k8s部署（2） -- Harbor部署
Harbo
Harbor是由VMware公司开源的企业级的Docker Registry管理项目，它包括权限管理(RBAC)、LDAP、日志审核、管理界面、自我注册、镜像复制和中文支持等功能，具有web管理功能，有了它之后能够很方便的管理容器镜像，搭配Jenkins使用很是方便。
同时Harbor也支持做为Helm的仓库。
官网地址：https://goharbor.io/
github地址：https://github.com/goharbor/harbor

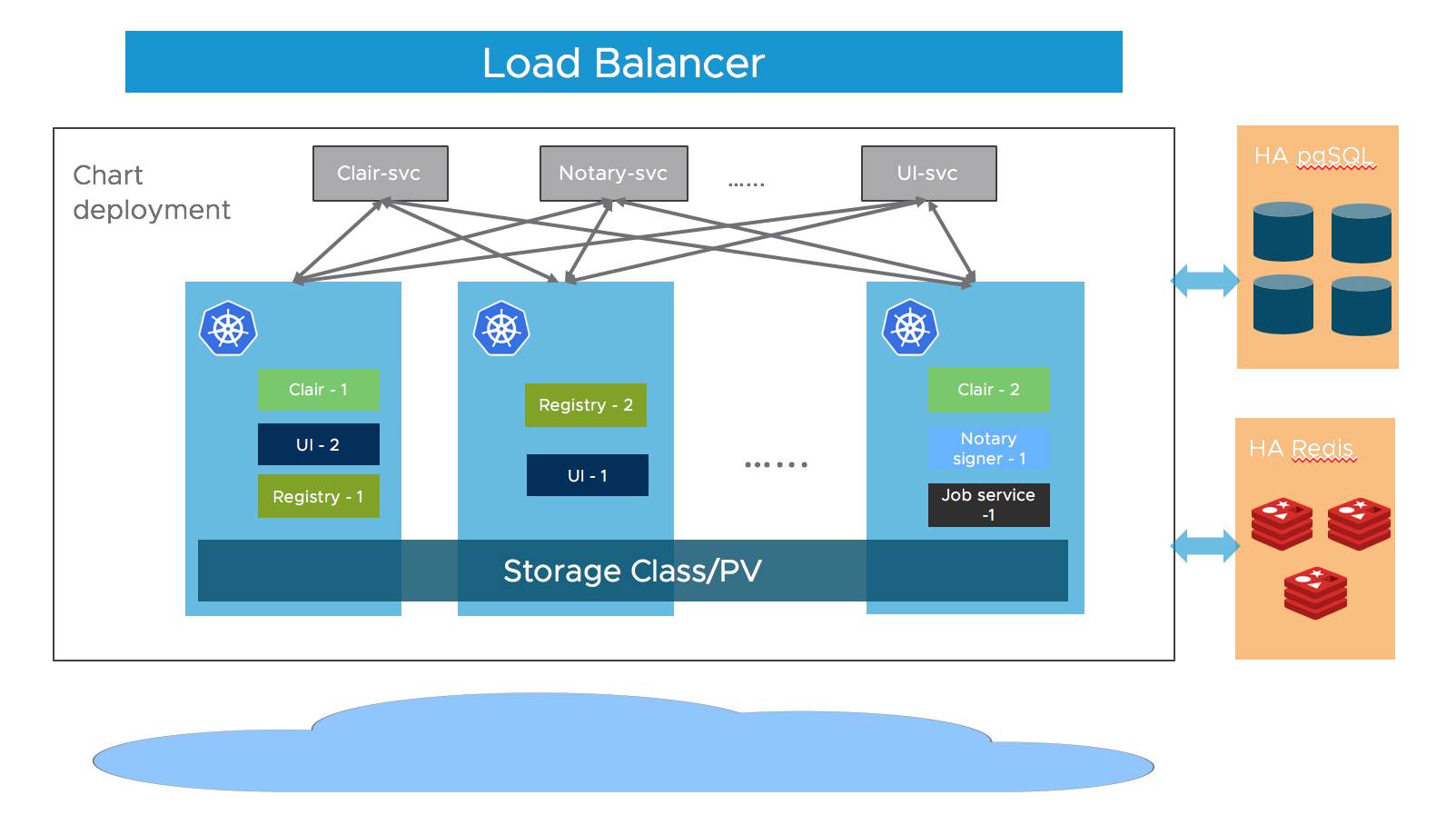

1. 架构
大多数的Harbor组件都是无状态的，这意味着我们可以部署多个工作节点来提供其性能和效率，k8s提供了这样的动态扩缩容能力。
存储层需要部署高可用的PostgreSQL, Redis集群。
Notary：负责镜像认证。
Registry：负责存储镜像文件。
Job Sevice：负责镜像复制工作的，他和registry通信，从一个registry pull镜像然后push到另一个registry，并记录job_log。
UI: 图形化界面，提供管理功能。
Clair：CoreOS发布的一个工具，用于容器镜像安全，比如扫描漏洞等
2. Helm安装Harbo
[root@master ~]# cd /mnt/k8s/
[root@master k8s]# mkdir harbor
[root@master k8s]# cd harbor/
[root@master harbor]# helm repo add harbor https://helm.goharbor.io
"harbor" has been added to your repositories
[root@master harbor]# helm fetch harbor/harbor --untar
[root@master harbor]# ll
总用量 0
drwxr-xr-x 5 root root 135 9月 21 10:11 harbor
[root@master harbor]# cd harbor/
[root@master harbor]# ll
总用量 252
drwxr-xr-x 2 root root 36 9月 21 10:11 cert
-rw-r--r-- 1 root root 567 9月 21 10:11 Chart.yaml
drwxr-xr-x 2 root root 58 9月 21 10:11 conf
-rw-r--r-- 1 root root 11357 9月 21 10:11 LICENSE
-rw-r--r-- 1 root root 201545 9月 21 10:11 README.md
drwxr-xr-x 16 root root 253 9月 21 10:11 templates
-rw-r--r-- 1 root root 33624 9月 21 10:11 values.yaml
2.1 配置
修改values.yaml:
#这里我只给出修改的参数，未修改的按照应用默认参数即可
expose:
type: ingress
tls:
### 是否启用 https 协议
enabled: true
secret: "testharbor.com"
ingress:
hosts:
### 配置 Harbor 的访问域名，需要注意的是配置 notary 域名要和 core 处第一个单词外，其余保持一致
core: testharbor.com
notary: notary.testharbor.com
controller: default
annotations:
ingress.kubernetes.io/ssl-redirect: "true"
ingress.kubernetes.io/proxy-body-size: "1024m"
#### 如果是 nginx ingress，则按下面配置：
nginx.ingress.kubernetes.io/ssl-redirect: "true"
nginx.ingress.kubernetes.io/proxy-body-size: "1024m"
nginx.org/client-max-body-size: "1024m"
## 如果Harbor部署在代理后，将其设置为代理的URL，这个值一般要和上面的 Ingress 配置的地址保存一致
externalURL: https://testharbor.com
### Harbor 各个组件的持久化配置，这里仍旧使用nfs
### nfs-storage需要提前创建nfs和storageClass
persistence:
enabled: true
### 存储保留策略，当PVC、PV删除后，是否保留存储数据
resourcePolicy: "keep"
persistentVolumeClaim:
registry:
existingClaim: ""
storageClass: "nfs-storage"
size: 20Gi
chartmuseum:
existingClaim: ""
storageClass: "nfs-storage"
size: 5Gi
jobservice:
jobLog:
existingClaim: ""
storageClass: "nfs-storage"
size: 1Gi
scanDataExports:
existingClaim: ""
storageClass: "nfs-storage"
size: 1Gi
database:
existingClaim: ""
storageClass: "nfs-storage"
size: 1Gi
redis:
existingClaim: ""
storageClass: "nfs-storage"
size: 1Gi
trivy:
existingClaim: ""
storageClass: "nfs-storage"
size: 5Gi
2.2 安装nfs
前面的课程已经安装过。
yum install -y nfs-utils #这条命令所有节点master、worker都执行
[root@master harbor]# echo "/data/harbor *(insecure,rw,sync,no_root_squash)" > /etc/exports
[root@master harbor]# mkdir -p /data/harbor/{chartmuseum,jobservice,registry,database,redis,trivy}
# 在master执行
[root@master harbor]# chmod -R 777 /data/harbor
#使配置生效
[root@master harbor]# exportfs -r
[root@master harbor]# systemctl start nfs
2.3 配置StorageClass
[root@master harbor]# kubectl create ns harbor
namespace/harbor created
vim harbor-storage.yaml
apiVersion: storage.k8s.io/v1 ## 创建了一个存储类
kind: StorageClass
metadata:
name: nfs-storage
annotations:
storageclass.kubernetes.io/is-default-class: "true"
namespace: harbor
provisioner: harbor-data #Deployment中spec.template.spec.containers.env.name.PROVISIONER_NAME 保持一致
parameters:
archiveOnDelete: "true" ## 删除pv的时候，pv的内容是否要备份
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: nfs-client-provisioner
labels:
app: nfs-client-provisioner
namespace: harbor
spec:
replicas: 1
strategy:
type: Recreate
selector:
matchLabels:
app: nfs-client-provisioner
template:
metadata:
labels:
app: nfs-client-provisioner
spec:
serviceAccountName: nfs-client-provisioner
containers:
- name: nfs-client-provisioner
image: registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/nfs-subdir-external-provisioner:v4.0.2
volumeMounts:
- name: nfs-client-root
mountPath: /persistentvolumes
env:
- name: PROVISIONER_NAME
value: harbor-data
- name: NFS_SERVER
value: 192.168.200.101 ## 指定自己nfs服务器地址
- name: NFS_PATH
value: /data/harbor ## nfs服务器共享的目录
volumes:
- name: nfs-client-root
nfs:
server: 192.168.200.101
path: /data/harbor
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: nfs-client-provisioner
namespace: harbor
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: nfs-client-provisioner-runner
rules:
- apiGroups: [""]
resources: ["nodes"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
resources: ["persistentvolumes"]
verbs: ["get", "list", "watch", "create", "delete"]
- apiGroups: [""]
resources: ["persistentvolumeclaims"]
verbs: ["get", "list", "watch", "update"]
- apiGroups: ["storage.k8s.io"]
resources: ["storageclasses"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
resources: ["events"]
verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: run-nfs-client-provisioner
subjects:
- kind: ServiceAccount
name: nfs-client-provisioner
namespace: harbor
roleRef:
kind: ClusterRole
name: nfs-client-provisioner-runner
apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: leader-locking-nfs-client-provisioner
namespace: harbor
rules:
- apiGroups: [""]
resources: ["endpoints"]
verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: leader-locking-nfs-client-provisioner
namespace: harbor
subjects:
- kind: ServiceAccount
name: nfs-client-provisioner
namespace: harbor
roleRef:
kind: Role
name: leader-locking-nfs-client-provisioner
apiGroup: rbac.authorization.k8s.io
[root@master harbor]# kubectl apply -f harbor-storage.yaml
storageclass.storage.k8s.io/nfs-storage created
deployment.apps/nfs-client-provisioner created
serviceaccount/nfs-client-provisioner created
clusterrole.rbac.authorization.k8s.io/nfs-client-provisioner-runner created
clusterrolebinding.rbac.authorization.k8s.io/run-nfs-client-provisioner created
role.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created
rolebinding.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created
2.4 生成证书
创建ca证书
[root@master harbor]# mkdir crt [root@master harbor]# cd crt/ # 生成 CA 证书私钥 [root@master crt]# openssl genrsa -out ca.key 4096 Generating RSA private key, 4096 bit long modulus ..++ ..++ e is 65537 (0x10001) # 生成 CA 证书 [root@master crt]# openssl req -x509 -new -nodes -sha512 -days 3650 \ -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=testharbor.com" \ -key ca.key \ -out ca.crt [root@master crt]# ll 总用量 8 -rw-r--r-- 1 root root 2033 9月 21 11:09 ca.crt -rw-r--r-- 1 root root 3243 9月 21 11:09 ca.key创建域名证书
生成私钥
[root@master crt]# openssl genrsa -out testharbor.com.key 4096 Generating RSA private key, 4096 bit long modulus .......++ ................................++ e is 65537 (0x10001)生成证书签名请求CSR
openssl req -sha512 -new \ -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=*.testharbor.com" \ -key testharbor.com.key \ -out testharbor.com.csr生成 x509 v3 扩展
cat > v3.ext <<-EOF authorityKeyIdentifier=keyid,issuer basicConstraints=CA:FALSE keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment extendedKeyUsage = serverAuth subjectAltName = @alt_names [alt_names] DNS.1=testharbor.com DNS.2=*.testharbor.com DNS.3=hostname EOF创建 Harbor 访问证书
openssl x509 -req -sha512 -days 3650 \ -extfile v3.ext \ -CA ca.crt -CAkey ca.key -CAcreateserial \ -in testharbor.com.csr \ -out testharbor.com.crt将 crt 转换为 cert ，以供 Docker 使用
openssl x509 -inform PEM -in testharbor.com.crt -out testharbor.com.cert
最终目录
[root@master crt]# ll 总用量 32 -rw-r--r-- 1 root root 2033 9月 21 11:09 ca.crt -rw-r--r-- 1 root root 3243 9月 21 11:09 ca.key -rw-r--r-- 1 root root 17 9月 21 11:15 ca.srl -rw-r--r-- 1 root root 2114 9月 21 11:15 testharbor.com.cert -rw-r--r-- 1 root root 2114 9月 21 11:15 testharbor.com.crt -rw-r--r-- 1 root root 1712 9月 21 11:11 testharbor.com.csr -rw-r--r-- 1 root root 3243 9月 21 11:11 testharbor.com.key -rw-r--r-- 1 root root 271 9月 21 11:14 v3.ext
2.5 部署
创建证书秘钥
[root@master crt]# kubectl create secret tls testharbor.com --key testharbor.com.key --cert testharbor.com.cert -n harbor secret/testharbor.com created [root@master crt]# kubectl get secret testharbor.com -n harbor NAME TYPE DATA AGE testharbor.com kubernetes.io/tls 2 5s安装
[root@master harbor]# helm install myharbor --namespace harbor ./harbor NAME: myharbor LAST DEPLOYED: Wed Sep 21 11:19:18 2022 NAMESPACE: harbor STATUS: deployed REVISION: 1 TEST SUITE: None NOTES: Please wait for several minutes for Harbor deployment to complete. Then you should be able to visit the Harbor portal at https://testharbor.com For more details, please visit https://github.com/goharbor/harbor测试
[root@master harbor]# kubectl get pods -n harbor[root@master harbor]# kubectl get po -n ingress-nginx -o wide [root@master harbor]# kubectl get node master -o wide [root@master harbor]# kubectl get ingress -n harbor
